Keyboard:
76-key, semi-weighted action with velocity sensitive adjustable keys (SWA76)

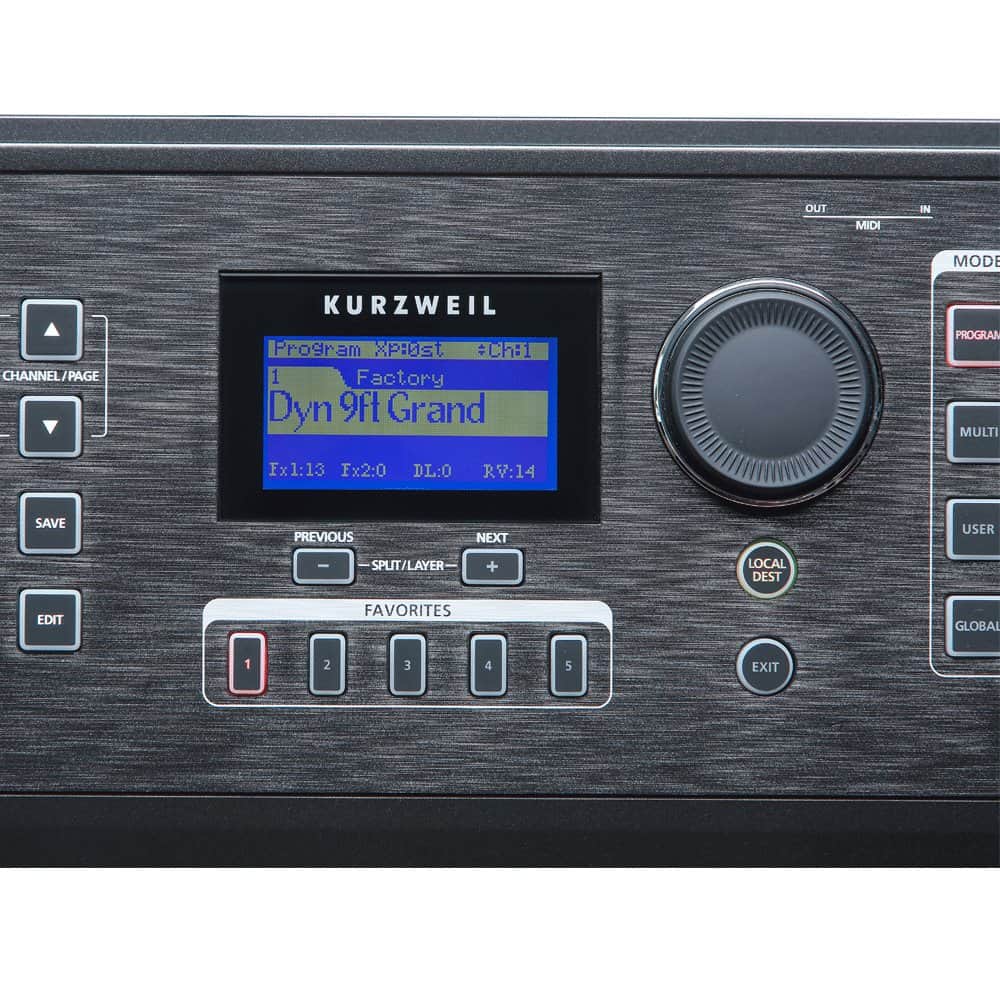

Display: 128×64 pixel monochrome LCD
Polyphony: 128 voice polyphony, dynamically allocated
Multitimbral: 16 parts (one per MIDI channel)
Architecture: VAST: Variable Architecture Synthesis Technology
KB3: ToneReal emulation
VA1: anti-aliasing, power-shaped oscillators and DSP processing from Kurzweil’s VA1 concept synth
Quick Split/Layer: Easy access with adjustable relative volume (up to 4 zones)
Factory Programs: 256
User Programs: 1024
Factory Multis: 130
User Multis: 1024
Favorites: 5
Compatibility: 100% compatibility with Forte SE programs
Load sounds from the Forte and PC3 family programs (some restrictions apply)
General MIDI: No
Kurzweil String Resonance: Yes
Piano Damper Noise: Yes
Effects: Hundreds of complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 total FX units
Controllers: 1 pitch wheel
1 modulation wheel
4 front panel knobs (configured as 4×3 = 12 virtual controls)
1 variation switch
1 arp switch
2 transpose switches
1 tap tempo switch
2 dual-switch pedal inputs (1 switch/sustain pedal is included; supports dual switch and half-damper for pianos / dual & half-damper pedals sold separately)
1 continuous control pedal inputs
Arpeggiators: 1- per Program, 4-per Multi
Analog Outputs: Two 1/4″ balanced TRS analog (32-bit DACs)
Headphones: 1 back-panel 1/4″ headphone output
130mW into 32 ohm headphones
MIDI: In, Out
USB: Two USB ports (one A port / one B port)
Complete MIDI functionality over USB
User program/multi file transfer to/from PC/Mac/Flash Drive
Operating System updates from PC/Mac/Flash Drive
Software Editors: External editors for Mac OS X, Windows PC and iOS devices
FREE OS Updates: OS updates over USB and/or Flash Drive
Included Accessories: Power cable, Switch pedal, USB cable
Height: (4.24″) (10.78 cm)
Depth: (14.07″) (35.75 cm)
Length: (46.54″) (118.2 cm)
Weight: (17.53 lb) (7.95 kg)
Power: External Power Supply, 15VDC 2.5A
