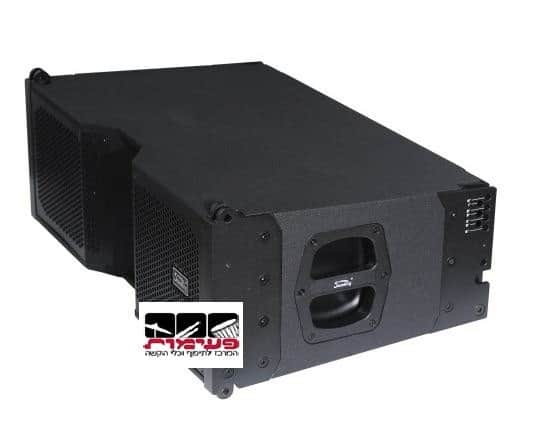

Double 8" Line Array Speaker
1000W Woofers + 150W Driver
| Two-way line array cabinet |
Type |
| 65Hz~19kHz (-10dB) ,80Hz~18kHz (+- 3dB) |
Frequency Response |
| ֯90 |
Horizonal Coverage(-6dB) |
| ֯6 |
Vertical Coverage(-6dB) |
| LF : 96dB , HF : 108dB |
Sensitivity (1W@1m) |
| 2*8" (203mm)/ 2" voice coil |
LF/MF |
| 2*1.75" (44mm) compression driver/NdFeB Magnet |
HF |
| LF : 16Ω , HF : 16Ω |
Rated Impedance |
| LF : 300W (continuous) , 1200W (peak) |
Rated Power |
| HF : 80W (continuous) , 320W (peak) |
Max SPL(@1m) |
| LF : 127dB , HF : 133dB |
|
| 250Hz , 2kHz (external) |
Crossover |
| 722*260.4*440 (mm) |
Dimension (WxHxD) |
| 30kg |
Weight |
| ֯0 ~ ֯6 each grade ֯ 1 |
Vertical Dispersion |
