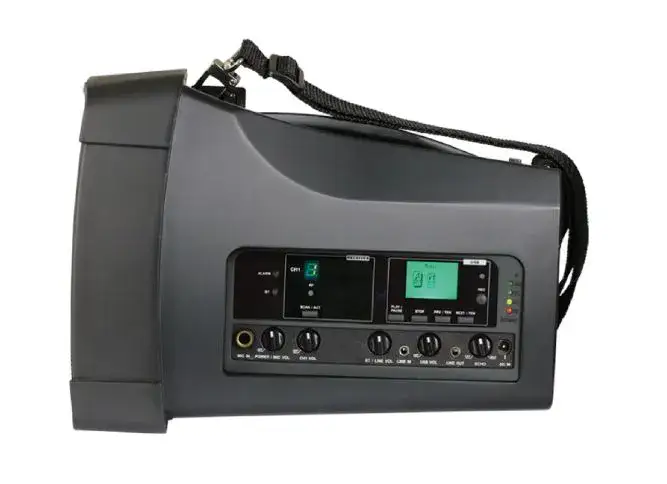

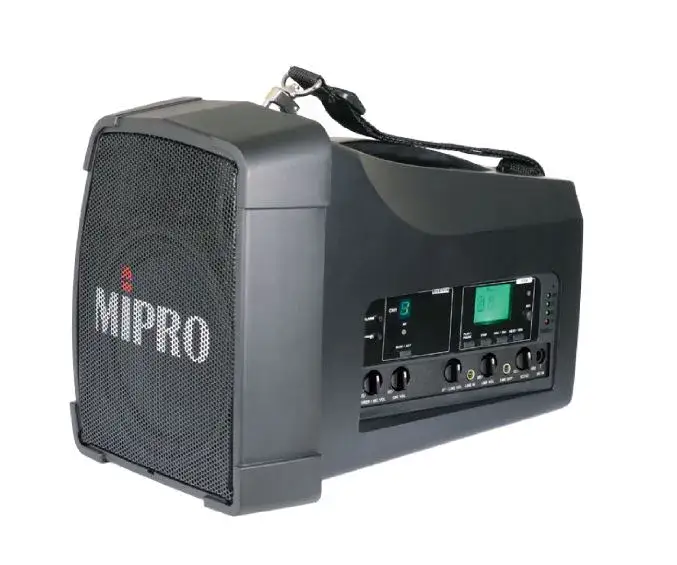

MA-200 Single-channel Personal Wireless Megaphone
- MA-200 incorporates the design essence of MA-202 and MA-100.
- The two-way, high efficiency speaker system delivers a clear and powerful sound in full range.
- Easy hand-carrying or stand-mounting makes MA-200 the most ideal megaphone for various applications.
- MA-200: One UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
- MA-200D: Two UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
- Plug-in Bluetooth module, USB player/recorder, built-in echo function, and alarm siren which has a fade-in effect.
- Equipped with audio input mixer. Each audio source has individual volume control.
- Removable Li-ion battery holder for fast insertion and replacement.
- Bluetooth with TWS technology can combine two megaphones for stereo sound.
| Model |
MA-200 |
| Name |
Single-channel Personal Wireless Megaphone |
| Max. SPL |
103 dB |
| Drivers |
1" Treble & 5" Woofer |
| Frequency Range |
80 Hz – 18 kHz |
| Audio Inputs |
MIC IN: 1 × 1/4" (6.3 mm)
LINE IN: 1 × 1/8" (3.5 mm) |
| Audio Output |
LINE OUT: 1 × 1/8" (3.5 mm) |
| Amplifier |
Class D |
| Output Power |
60 W RMS, 102 W peak |
| Receiver Module |
1 × UHF or ISM 5.8 GHz module |
| Audio Players |
Plug-in Bluetooth module & USB Recorder/Player |
| Other Functions |
Echo on mics & siren sound effect |
| Power Supply |
DC (19 – 24 V) socket for external AC (100 – 240 V) power supply |
| Battery Type |
4 × 18650 Li-ion batteries (MB-14) |
| Battery Indicator |
4-segment indicator (25/50/75/100%) |
| Standby Time |
Up to 10 hours |
| Dimensions |
163 × 204 × 276 mm (W × H × D) |
| Weight |
Approx. 2.4 kg (batteries included) |
| Optional Accessories |
SC-200 carry bag, MS-30 tripod stand, MM Series microphones |
| Note |
Patented. Telecom and safety regulations approved |
